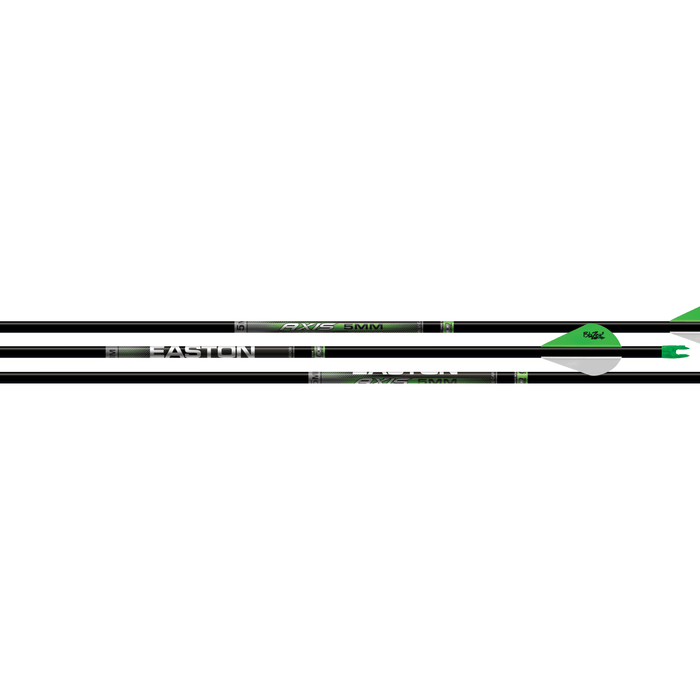

Easton Axis 5mm 6 Pack Arrows
Want custom arrows built? Use our Custom Arrow Builder and our Phoenix pro shop will cut, insert and fletch your dozen. Not sure which spine? Use our spine calculator, and check your front of center with our FOC calculator.
The Easton Axis 5mm is the proven micro-diameter carbon hunting arrow — faster, deeper, deadlier. Its small frontal area focuses kinetic energy for maximum penetration on big game, slips through crosswinds better than standard-diameter carbon, and delivers 24% more kinetic energy density right where it counts. Millions of successful hunts run on this shaft.
This 6-pack ships with X Nocks and 16-grain HIT inserts installed, and we stock every common spine. Add your custom cut length at checkout so your arrows arrive built to your draw — and pair them with 9/32" field points sized for the Axis's micro diameter.
SPECS
- Pre-installed X Nock
- X HIT 8-32 inserts
- Straightness: ± .003”
- High-strength carbon-composite fibers
- Includes Six 16 Grain HIT Inserts
- Brass X HIT® 8-32 Break-Off Insert sold separately
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28″ SPAN DEFLECTION IN INCHES |
STOCK LENGTH INCHES |
RPS POINT O.D. INCHES |
BROADHEAD ADAPTER RING (5 GRAINS) | O.D. INCHES |
HALF OUT SIZE |
|---|---|---|---|---|---|---|---|
| 700 | 6.1 | 0.700 | 31.5 | 17/64 | BAR 3 | 0.245 | #1 |
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 |
31 | 17/64 | BAR 3 | 0.256 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | BAR 4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | BAR 5 | 0.267 | #2 |
| 300 | 10.7 | 0.300 | 32.5 | 9/32 | BAR 6 | 0.275 | #2 |
| 260 | 11.5 | 0.260 | 34* | 9/32 | BAR 6 | 0.280 | #2 |
