Garmin XERO A1i Pro Hoyt Edition Digital Bow Sight

Original price $1,299.00 - Original price $1,299.00
Original price
$1,299.00 - $1,299.00
Current price $1,299.00

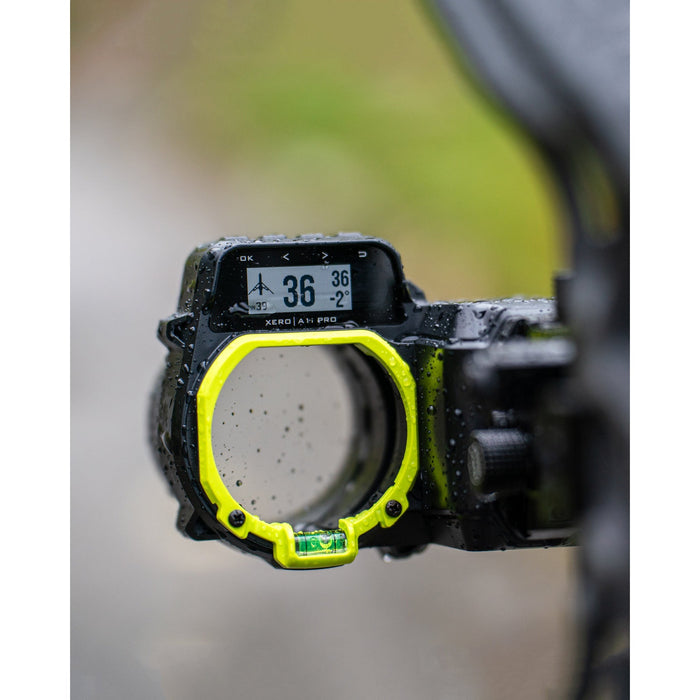

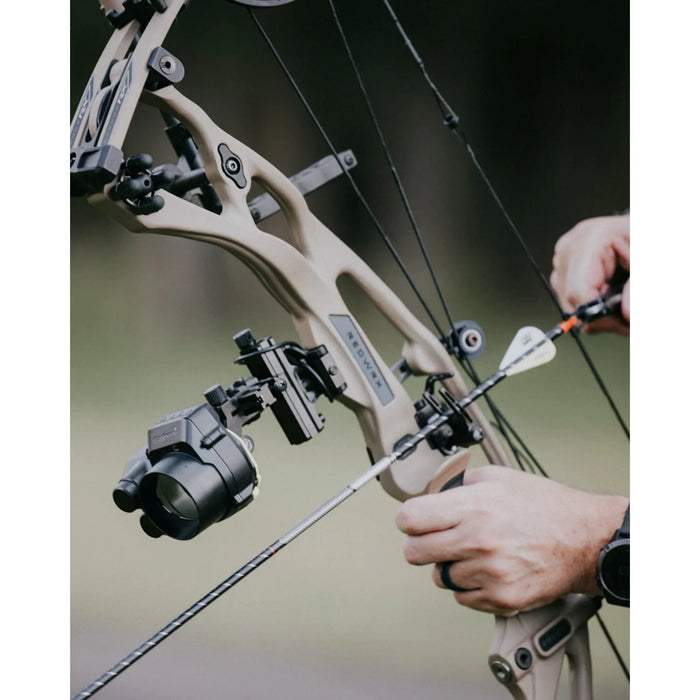

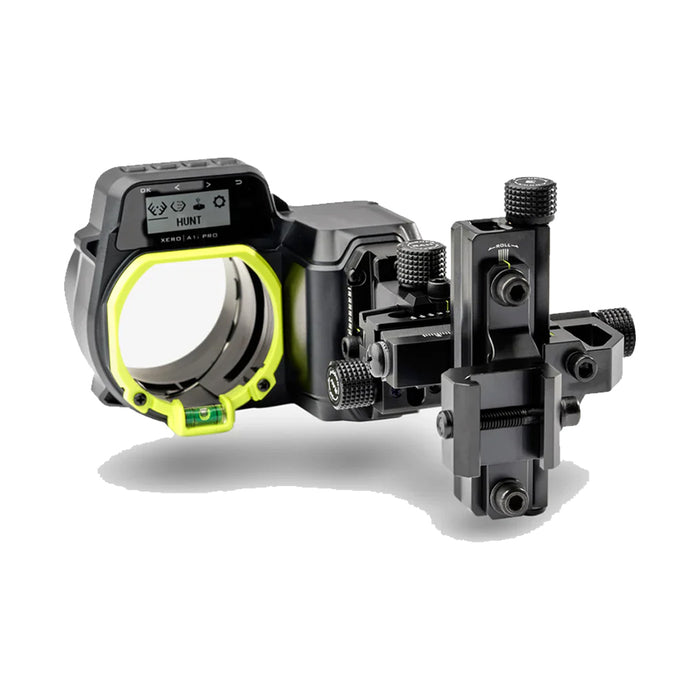

You’ve never seen a bow sight like this before. It measures the angle-compensated distance to your target and provides an LED pin for the shot. No more jeopardizing your shot by trying to range the animal and then draw your bow. Streamline your shot experience with the Hoyt Picatinny XERO® A1i Pro bow sight, powered by Garmin®. Compatible with Hoyt’s In-Line Picatinny System for better bow balance and less weight.


  • Auto-ranging digital sight calculates the distance to your target automatically
  • Dual-color LED pins to let you find the right distance in an instant
  • Micro-adjustable rails allow you to fine-tune your windage, elevation, and laser reticle alignment for the easiest, most precise setup yet
  • Automatically creates the pin stack to the estimated maximum distance for your bow based on your arrow speed, draw length, and arrow diameter
  • See a flashing pin above the aiming point that shows the estimated apex of your arrow's flight
  • Quickly and easily detaches to make travel and setup a breeze
  • One-year battery life means more hunting and more confidence in your shot and less time fiddling around with batteries and settings (about 25,000 ranges on 2 lithium AAA batteries - included)
  • Customizable arrow profiles for multiple arrow configurations with saved pin settings so you can change from your practice set up to your hunting setup in seconds
  • Laser Locate Feature showcases Garmin's waypoint project feature when paired with a compatible Garmin GPS device (sold separately) to show the target's exact location when the shot or range was taken
  • Laser range finder gets instant angle-compensated distance to game up to 100 yards away or reflective targets up to 300 yards away
  • The dynamic level lets you see leveling information right next to the pin with variable sensitivity based on shot distance so you don't have to focus to see if your shot is level
  • In Xtra Distance Mode, you can set your sight in an extended position to show pins out to farther distances
  • Mount the silent trigger button in the most convenient spot for your grip to minimize movement at rest or at full draw


  • Physical Dimensions: 9.2" x 5.0" x 3.7" (233.8 x 127.2 x 94.7 mm)(includes device and mount)
  • Display Size: 1.00"W x 0.42"H (2.5 x 1.1 cm); 2.0" diagonal (5.0 cm)
  • Display Resolution: 160 x 68 pixels
  • Display Type: Sunlight-visible, transflective memory-in-pixel (MIP)
  • Weight: 18.0 ounces (510.3 g)(includes device and mount)
  • Battery Type: 2 lithium AAA (included)
  • Battery Life: Up to 1 Year
  • Water Rating: IPX7
  • Pin Diameters: .007" and larger for red, .009" and larger for green
  • Operating Range: -20C (-4F) to 60C (140F)
  • Glass Lens Coating: The target side is anti-reflective, water repellent, and easy to clean; the archer side is 20% reflective, water repellent, and easy to clean
  • Light Projection: no visible light is ever projected toward the target
  • Magnification: None
  • Pin Brightness: Ambient light sensor-controlled or manual


  • Xero A1i PRO Bow Sight (right- or left-handed depending on the version selected)
  • Mount
  • Protective bag
  • 2 AAA lithium batteries
  • 3 Allen hex keys
  • 2 screws
  • Grip tape
  • MicroUSB cable
  • Documentation
